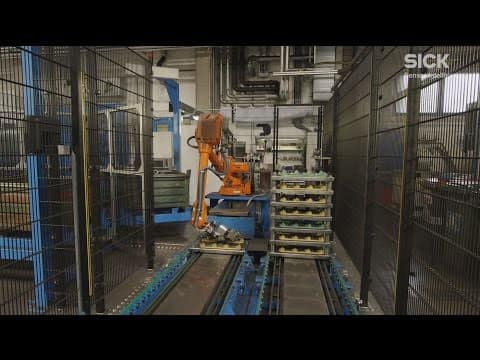

The PLB robot guidance system is designed for precise localization of parts stored in boxes or on pallets. The system is very flexible with a selection of 3D cameras to choose from. In combination with multiple localization algorithms, this ensures reliable operation in a large range of applications from small-part handling and depalletizing through to handling of large foundry parts. PLB supports easy configuration through a user interface tailored for part localization. It also includes functions to support simple integration with the robot controller, making it straightforward to integrate the system in production. Both the software and the pre-calibrated cameras are designed to be used right out of the box, so the system can be ready within minutes.
| Example volume of view (L x W x H) | 800 mm x 1,200 mm x 1,000 mm (max. height range) 1,000 mm x 1,200 mm x 750 mm (max. image area) 1,300 mm x 1,200 mm x 1,000 mm 800 mm x 600 mm x 400 mm 400 mm x 300 mm x 200 mm |
| Image resolution | 1 mm … 4 mm, depending on distance to camera 1 mm … 1.7 mm, depending on the distance to the camera 0.7 mm … 0.8 mm, depending on the distance to the camera 0.4 mm … 0.5 mm, depending on the distance to the camera 0.4 mm … 1.0 mm, depending on the distance to the camera 0.2 mm … 0.4 mm, depending on the distance to the camera 0.1 mm … 0.2 mm, depending on the distance to the camera |
| Part localization time | 5 s … 10 s (typical) / 3 s … 10 s (typical) |
| Localization accuracy | < +/- 2 mm and < +/- 1° (typical) < +/- 1 mm and < +/- 1° (typical) < +/- 0.7 mm and < +/- 0.7° (typical) < +/- 0.5 mm and < +/- 0.5° (typical) < +/- 0.3 mm and < +/- 0.3° (typical) |
| Enclosure rating | IP65 / IP54 |
